1. Purpose;

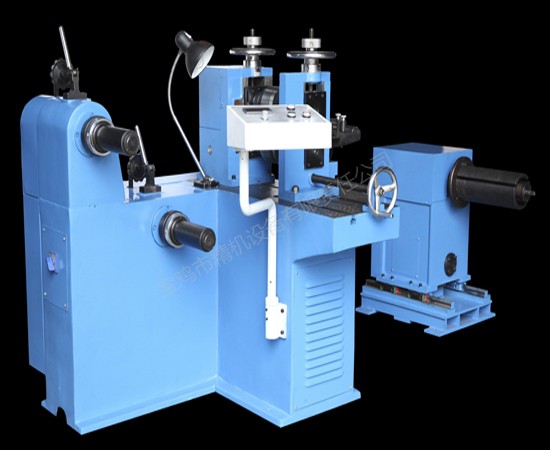

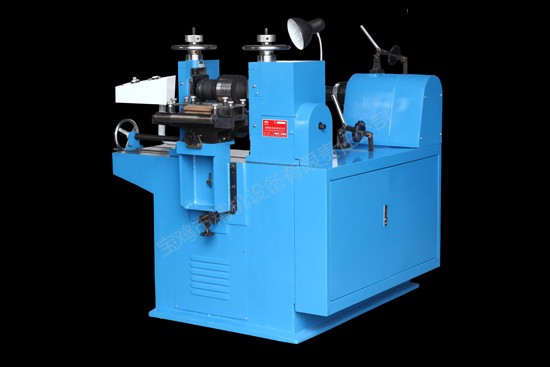

This shearing machine is designed for processing 0.02 thick amorphous coil materials, and can also perform longitudinal shearing of precision ultra-thin metal strips, and rewire the cut narrow strips into rolls. This machine has the characteristics of easy operation, high cutting quality, high material utilization rate, and stepless speed regulation for cutting.

2. Main technical data;

2.1. Shear strip thickness: 0.02~0.6mm

2.2. Maximum width of shear band material: 220mm

2.3. Minimum cutting width: 2mm

2.4. Roller diameter: φ 130mm

2.5. Knife shaft diameter: 60mm

2.6. Cutting speed: 10~60m/min (variable frequency speed regulation)

2.7. Number of cutting strips: ≤ 12 strips

2.8. Inner diameter of winding: φ 75mm

2.9. Outer diameter of winding: ≤φ 330mm

2.10. Equipment weight: 1500kg

2.11. Electric motor: 2.2KW

2.12. Reducer: Cycloid pinwheel reducer

2.13. Dimensions (length X width X height): 2500X1000X1200mm
