1、 Purpose;

This equipment is compatible with JMGJ08 or JMGJ20 rolling shear machines, and the finished narrow strips cut are wound on sleeves with uniform spacing and beautiful winding quality. Solved the difficulty of winding narrow strip sizes, and has been used for solar energy project chip soldering leads, etc

2、 Main technical indicators

1. Material of strip: T2 copper strip, metal alloy, non-metallic material

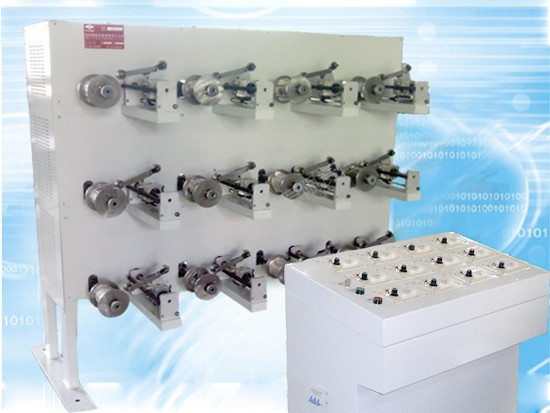

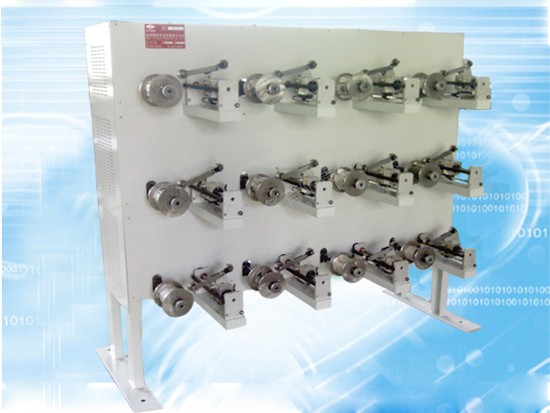

2. Number of reels: 12 (reels provided by the manufacturer)

3. 12 cable connectors, 12 torque motors and controllers.

4. Maximum winding speed: 25m/min

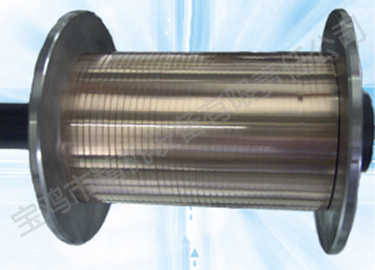

5. Specification of winding reel: 50mm x 150mm x 95mm (can be customized according to user needs)

6. Cable pitch range: 1-10mm

7. Maximum specification for each strip: 5X0.1mm

8. When winding, keep each tension individually adjustable.

9. Requirements for guide wheels: All guide wheels are made of wear-resistant nylon material.

10. Each strip of material is separated by a cable setter, without interfering with each other.

11. Each strip is driven by a torque motor and controller to ensure that each strip is properly collected.
