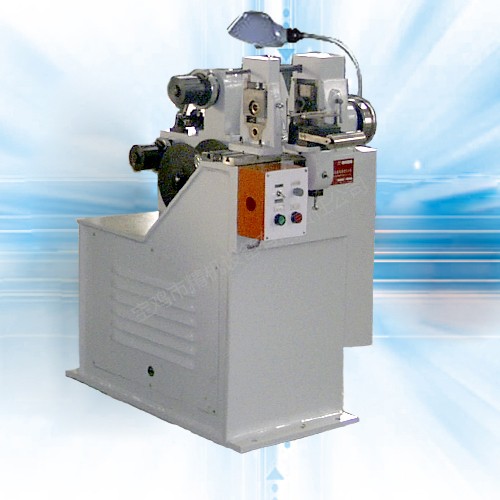

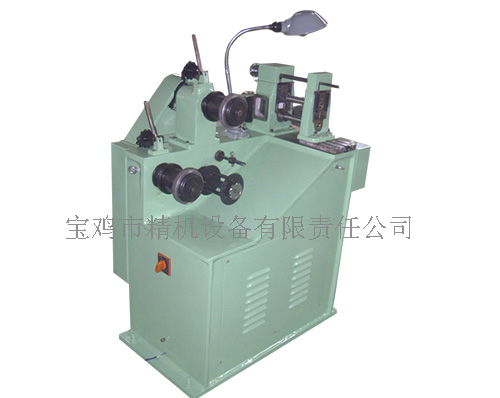

Main technical data of JMGJ08 small rolling shear machine:

1. Shear strip thickness: 0.02mm~0.35mm

2. Maximum width of sheared strip material: 80mm

3. Maximum outer diameter of raw material roll: Φ 300mm

4. Diameter of disc rolling cutter: Φ 45mm~Φ 60mm

5. Cutting speed (when the diameter of the disc cutter is Φ 60mm): 20mm/min (variable frequency speed regulation)

6. Minimum width of material after cutting: 1mm

7. Inner diameter of the cut material roll: Φ 80mm

8. Maximum outer diameter of the cut roll: Φ 150mm

9. Cut a strip with a thickness of 0.35mm (when the strength limit b=130Kg, the number of simultaneous cuts should not exceed 12)

10. Motor power: 0.75KW

11. Speed: 1410 revolutions per minute

12. Dimensions (length X width X height): 810 * 440 * 1020
