1、 Main technical parameters of the equipment:

1. Purpose:

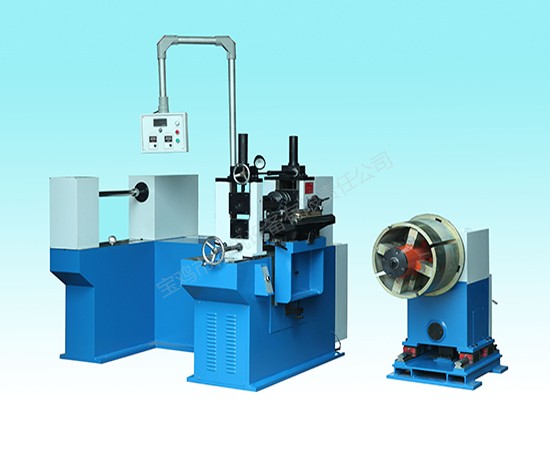

This longitudinal cutting machine is used for longitudinal cutting of metal strip materials and rewinding the cut narrow strips into rolls.

This machine is easy to operate; High cutting quality; High material utilization rate; The cutting speed can be infinitely adjusted.

This equipment is mainly used for cutting precision thin strips, nickel alloys, titanium alloys, and various precious metal strips.

2. Main technical data

2.1 Shear strip thickness: 0.025mm~0.6mm

2.2. Maximum width of shear band material: 420mm

2.3. Maximum outer diameter of raw material roll: φ 650mm

2.4. Inner diameter of raw material roll: shaft diameter of 100mm

Outer diameter of the cylinder is 160mm

2.5. Maximum weight for unwinding: 1000kg

2.6. Minimum cutting width: 4mm

2.7. Roller diameter: φ 130mm

2.8. Blade shaft diameter: 60mm

2.9. Maximum cutting speed: 60m/min

2.10. Maximum number of cuts: 12

2.11. Shear accuracy: Width tolerance: 0-0.02mm

Shear burrs: ≤ 0.01 mm

Shear bending: ≤ 1 mm/M (bandwidth greater than 20 mm)

2.12. Diameter of the winding drum: plastic winding drum inner diameter of φ 35mm

Outer diameter of 40mm

2.13. Maximum outer diameter of winding: 200mm (weight 10kg)

2.14. Electric motor: 4KW

2.15. Reducer: Cycloid pinwheel reducer

2、 Main component description

1. Uncoiler machine

The uncoiler unfolds the rolled strip for slitting by the slitting machine. The drum is a cantilever manual expansion and contraction four pyramid structure, and the unwinding machine moves along the track to adjust its position to achieve the alignment of the strip feeding. The track adopts HIWIN linear guide pair and magnetic powder brake.

Nominal diameter of the drum: φ 100 mm (drum body diameter of φ 100 mm)

2. Longitudinal cutting machine

The longitudinal cutting inlet end is equipped with a guide device, and the side guide plate can be adjusted in the left and right, front and rear directions. The guide device can also be adjusted up and down according to the grinding of the cutting tool. The guide device track adopts HIWIN linear guide pairs, which are convenient to operate and ensure the accuracy of the movement position.

The lower cutter shaft is fixed, and the upper cutter shaft is lifted by self-locking mechanism and left and right synchronous lifting mechanism. There is clearance elimination link, and the pointer shows the adjustment amount. The movable memorial archway can be moved out, which is convenient for tool installation and replacement. The moving out track uses HIWIN linear guide pairs.

The longitudinal cutting power adopts an AC motor, which is transmitted to the upper and lower cutter shafts through a synchronous toothed belt and gear pair via a reducer.

Shear force: 4KW

3. Coiling device

The winding adopts a dual support structure, and the winding tension can be adjusted by adjusting the controller of the magnetic powder clutch of the winding device.

Nominal diameter of drum: φ 35 mm

4. Electric control system

The electronic control system adopts variable frequency speed regulation, and the operation console is installed on the longitudinal shear machine.
