1. Purpose:

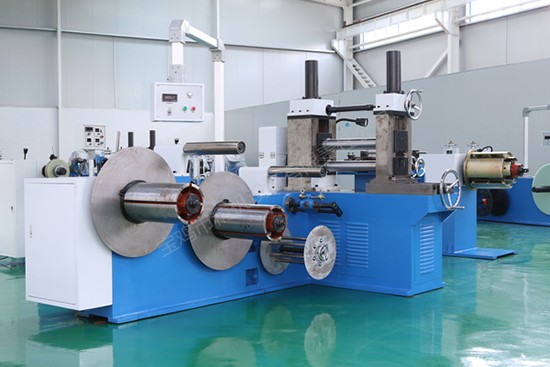

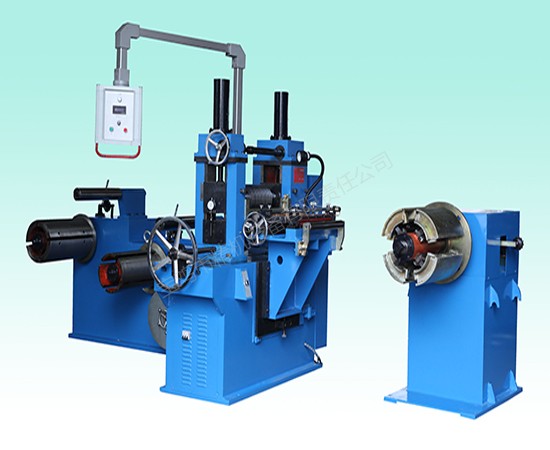

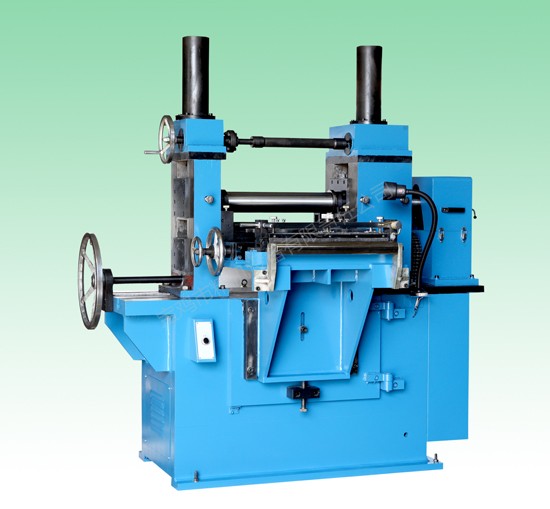

This rolling shear longitudinal cutting machine is used for longitudinal cutting of metal strip materials and rewinding the cut narrow strips into rolls. This machine is easy to operate; High cutting quality; High material utilization rate; The cutting speed can be infinitely adjusted. The guide platform and material rack have a left and right movement mechanism that can be adjusted on the operating side for easy guidance of the material. They can be adjusted while cutting to ensure safety.

2. Main technical data

2.1 Shear strip thickness: 0.15~2.5mm

2.2. Maximum width of shear band material: 450mm

2.3. Maximum outer diameter of raw material roll: φ 1000mm

2.4. Inner diameter of raw material roll: φ 280mm~φ 520mm (with accessories)

2.5. Maximum weight for unwinding: 2500kg

2.6. Minimum cutting width: 10mm (δ ≤ 0.8 mm)

2.7. Roller diameter: 200mm

2.8. Blade shaft diameter: φ 90mm

2.9. Cutting speed: 10~90m/min (thin strip)

2.10. Number of cutting strips: ≤ 12 strips (δ ≤ 1 mm)

2.11. Inner diameter of winding: 250mm, range of expansion and contraction; 15mm (other specifications to be ordered separately by the user)

Outer diameter of winding: 500mm

Maximum outer diameter of winding: 750mm (single axis winding)

2.12. Motor: YCT225-4B N=15KW n=1250~125r/min

2.13. Reducer: Cycloid pinwheel reducer BXW15-6-1/9

2.14. Equipment weight: 3200kg

3. Explanation

3.1. The inner diameter of the roll can be customized according to the user's requirements.

3.2. When the outer diameter of the winding is increased according to user requirements, additional winding power can be purchased externally.
