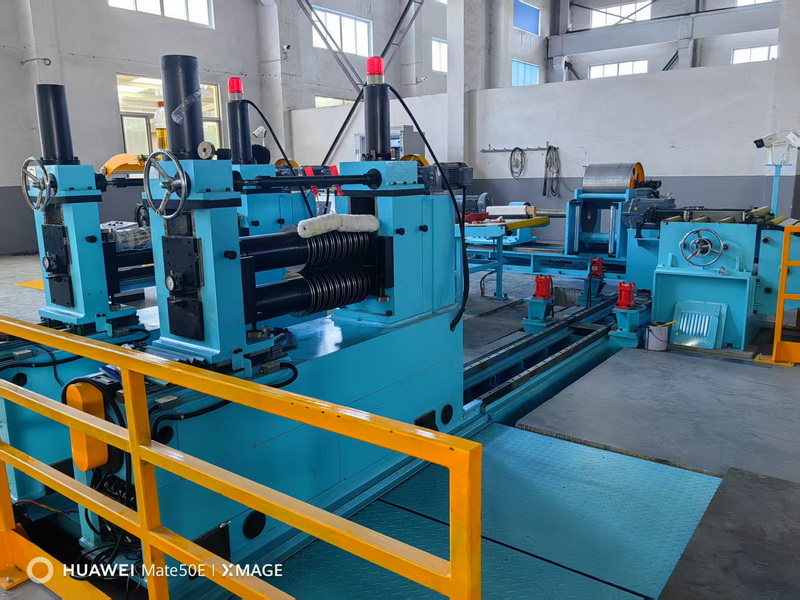

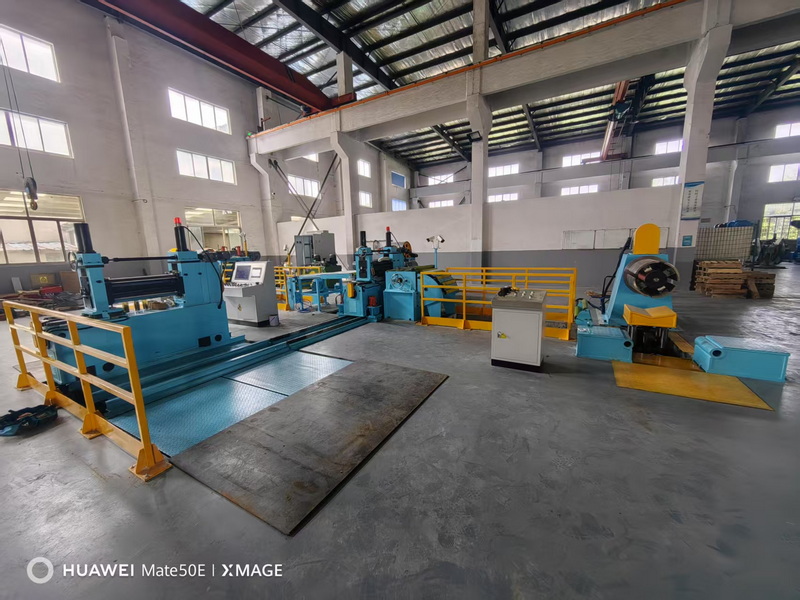

JMZ65A type silicon steel strip longitudinal cutting unit

Specification: (0.18-0.5 × 200-650) mm

1、 Main technical parameters of the equipment:

1. Purpose:

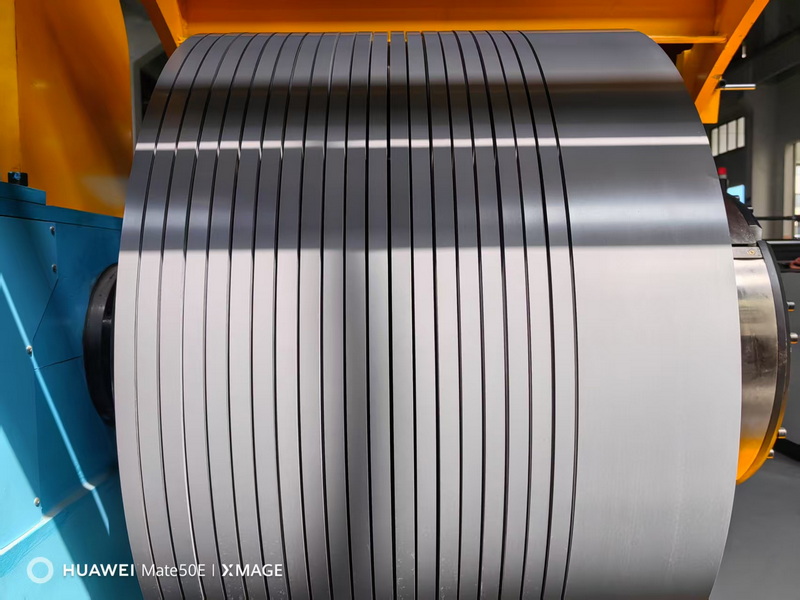

This longitudinal cutting unit is used for longitudinal cutting of oriented silicon steel strips, and the narrow strips after cutting are rewound into rolls with a certain tension. This unit is equipped with dual heads, which have the characteristics of easy operation, high cutting and winding quality, high unit operating efficiency, and high degree of automation.

2. Main technical data

2.1. Shear strip material: Electrical steel strips with oriented silicon steel, non oriented silicon steel, etc

2.2. Shear strip thickness: 0.18-0.5mm

2.3. Shear strip width: 200-650mm

2.4. Outer diameter of raw material roll: ≤Φ 1200mm

2.5. Inner diameter of raw material roll: Φ 508mm

2.6. Unwinding weight: ≤ 5000kg

2.7 Form of unwinding: Active unwinding

2.8. Finished product width: ≥ 15mm

2.9. Roller diameter: Φ 200mm

2.10. Knife shaft diameter: Φ 100mm

2.11. Unit speed: ≤ 120m/min

2.12. Number of cuts: ≤ 30

2.13. Inner diameter of winding: Φ 508mm

2.14. Maximum outer diameter of winding: ≤Φ 1200mm

2.15. Maximum weight for winding: ≤ 5000kg

2.16. Width tolerance: ≤± 0.03mm

2.17. Burr height: ≤ 0.01mm

2.18. Finished product with material sickle bending: ≤ 1mm/m

2.19. Winding layer error: ≤± 0.25mm (excluding inner and outer five circles);

2.20. Equipment weight: approximately 18000kg

2.21. Dimensions: 13 meters x 7.5 meters x 1.8 meters

2.22. Main power motor: 7.5Kw/4P (unwinding machine)

18.5Kw/4P (longitudinal cutting machine)

4.0Kw/4P × 2 (edge material coiler)

30Kw/4P (winding machine)

2.23. Reducer: Hard toothed helical gear reducer

2、 Unit Process Description:
