We provide various models and specifications of rolling shear cutting tools for industries such as electronics, light industry, metallurgy, shipbuilding, and food packaging, and undertake the processing of imported longitudinal shear cutting tools.

Processing range: below 400mm in diameter

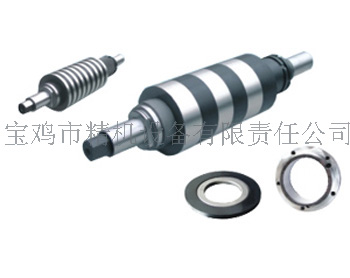

Rolling disc cutter

1. Combination form: movable blade disc, fixed blade group, combination blade (including blade pad)

2. Disc cutter diameter: φ 42mm - φ 400mm

3. Thickness: determined according to customer requirements

4. Parallelism of the two end faces of the disc cutter: 0.002-0.004mm

5. Processing roughness: smoothness

6. Hardness; HRC60-65

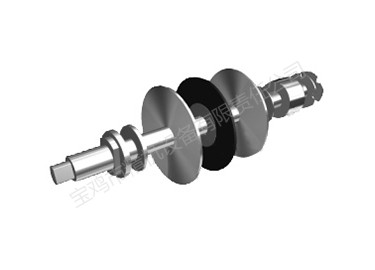

Schematic diagram of rolling cutter assembly

1. Knife shaft 2, edge material knife pad 3, edge material knife 4, knife pad 5, rubber pad

6. Disc knife 7, edge material knife pad 8, adjustment sleeve 9, nut 10, nut
